产品描述
产品介绍
雷达模块是集成雷达微波技术和光照强度感应技术，是一种感应物体移动环境光照和物体移动并控制灯具等负载的吸顶式/墙壁式电子节能开关。可用于企业、宾馆商场、车库、家庭的过道、走廊等敏感区域，或用于安全区域的灯光控制或报警系统等。该模块正常使用需要上位机支持，可在上位机上设置模块光照阈值、雷达灵敏度、以及触发照明场景类型，可实现触发条件和触发照明场景的灵活配置，具有很广泛的适用性。
功能概述
集成雷达检测技术和光照检测技术，功能丰富。
支持RS485总线通讯，通讯可靠。
支持触发场景配置，触发条件配置，适用性强。
配置网关支持以太网通讯和4G通讯，可实现上位机配置，手机APP控制，人机交互性好，操作方便。
技术参数
|
工作电压 |
DC 12V |
|
使用环境 |
-40~70℃ |
|
通讯方式 |
RS485 |
|
外形尺寸 |
46（r）*43（h）mm |
|
外壳材料 |
ABS阻燃料 |
|
安装方式 |
吸顶、挂壁式 |
参数设置
|
功能 |
参数设置 |
|
距离等级 |
0：约15米
31：约2米
20：约6-7米(默认)
|
|
感应持续时间 |
0~36000(s)
默认：10s
|
|
光敏使能 |
打开：使用需配合雷达模式
关闭：只使用雷达模式
|
|
光控值 |
下限值：0
上限值：48
默认：15~25
|
使用说明
雷达模块感应到物体移动后触发信号，下发场景指令。通过平台上设置场景序号，配置对应的模块场景，在雷达模块上设置对应的执行场景序号。感应到物体经过时，雷达模块会根据自身的场景，下发指令控制模块。设置方法如下：
1.设置照明模块的内置场景，给该场景设置一个场景序号；
2.设置传感器的地址（地址不可和照明模块一样），选择该传感器需要执行对应的场景序号；
3.设置传感器雷达的参数，距离等级，雷达感应持续时间（秒），是否启用光敏使能，设置光控上限值与下限值。

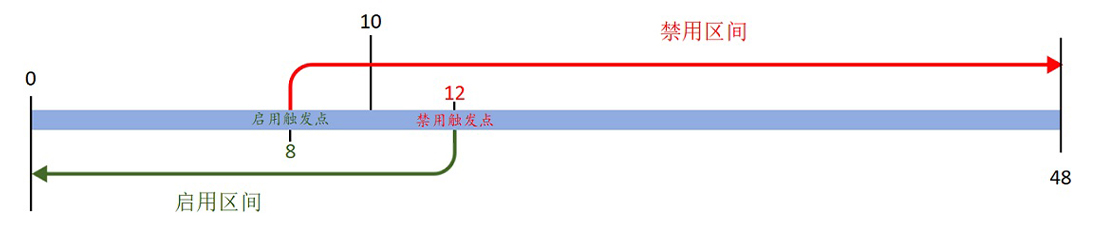

注：如果需要同时开启感应和光照度，两者关系如下：
如果将光控阈值指定为10，那么光控下限值设置为8，上限值设置为12；
程序执行有以下几种情况：
（1）光强由弱转强的过程中，雷达初始为启用状态，当光强增加，大于12时，雷达禁用，这时光强在8-48的区间渐变时，雷达一直处于禁用状态;
（2）光强由强转弱的过程中，雷达初始状态为禁用状态，当光强减弱，小于8时，雷达启用，这时光强在0-12的区间变化时，雷达一直处于启用状态。

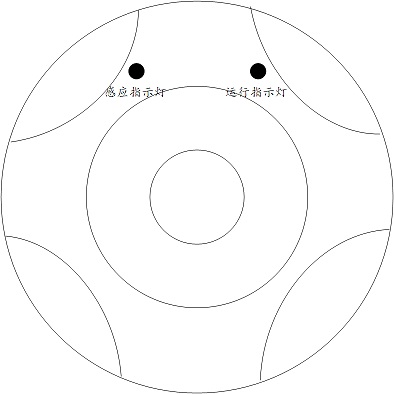

面板说明
运行指示灯亮表示模块供电正常
感应指示灯亮表示检测到附近有物体移动
PS:感应到物体移动后模块的触发信号会延迟一段时间，避免物体短暂停留，误关闭触发。 感应距离和延迟时间均可以在平台上调整。

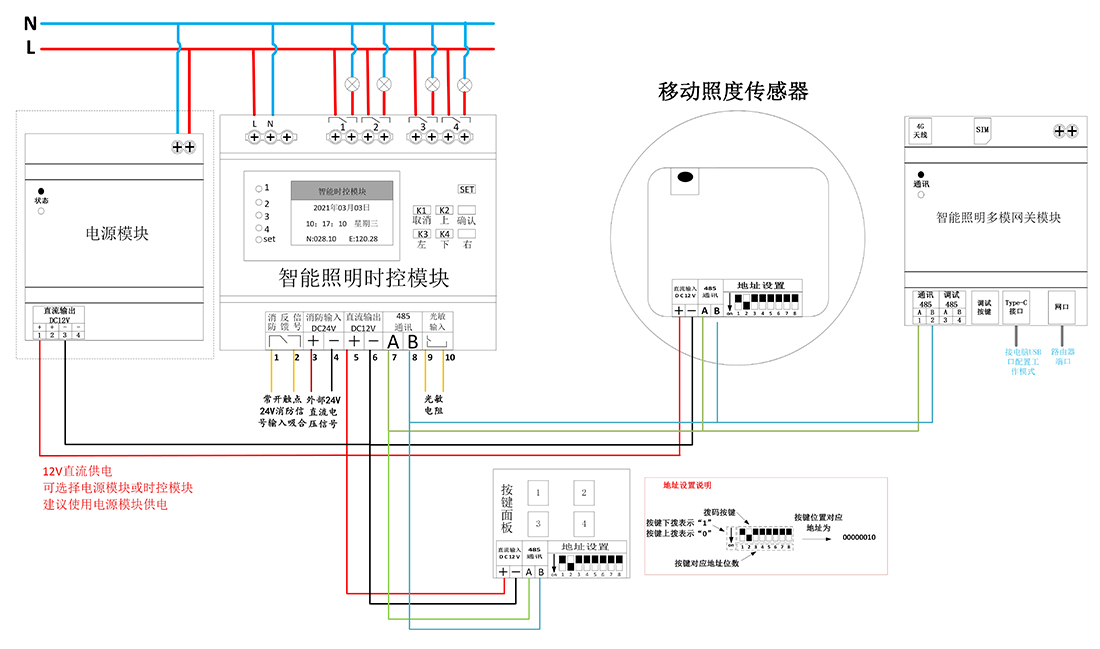

模块接线图
拨码开关说明
拨码开关对应地址如下：采用2进制方式，下拨码为0（1-8数字端），上拨码为1。
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
对应值 |
|
1 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
1 |
|
0 |
1 |
0 |
0 |
0 |
0 |
0 |
0 |
2 |
|
1 |
1 |
0 |
0 |
0 |
0 |
0 |
0 |
3 |
|
0 |
0 |
1 |
0 |
0 |
0 |
0 |
0 |
4 |
|
1 |
0 |
1 |
0 |
0 |
0 |
0 |
0 |
5 |
|
0 |
1 |
1 |
0 |
0 |
0 |
0 |
0 |
6 |
|
1 |
1 |
1 |
0 |
0 |
0 |
0 |
0 |
7 |
|
0 |
0 |
0 |
1 |
0 |
0 |
0 |
0 |
8 |
|
1 |
0 |
0 |
1 |
0 |
0 |
0 |
0 |
9 |
|
0 |
1 |
0 |
1 |
0 |
0 |
0 |
0 |
10 |
|
1 |
1 |
0 |
1 |
0 |
0 |
0 |
0 |
11 |
|
0 |
0 |
1 |
1 |
0 |
0 |
0 |
0 |
12 |
|
1 |
0 |
1 |
1 |
0 |
0 |
0 |
0 |
13 |
|
0 |
1 |
1 |
1 |
0 |
0 |
0 |
0 |
14 |
|
1 |
1 |
1 |
1 |
0 |
0 |
0 |
0 |
15 |
|
0 |
0 |
0 |
0 |
1 |
0 |
0 |
0 |
16 |
|
1 |
0 |
0 |
0 |
1 |
0 |
0 |
0 |
17 |
|
0 |
1 |
0 |
0 |
1 |
0 |
0 |
0 |
18 |
|
1 |
1 |
0 |
0 |
1 |
0 |
0 |
0 |
19 |
|
0 |
0 |
1 |
0 |
1 |
0 |
0 |
0 |
20 |
|
1 |
0 |
1 |
0 |
1 |
0 |
0 |
0 |
21 |
|
0 |
1 |
1 |
0 |
1 |
0 |
0 |
0 |
22 |
|
1 |
1 |
1 |
0 |
1 |
0 |
0 |
0 |
23 |
|
0 |
0 |
0 |
1 |
1 |
0 |
0 |
0 |
24 |
|
1 |
0 |
0 |
1 |
1 |
0 |
0 |
0 |
25 |
|
0 |
1 |
0 |
1 |
1 |
0 |
0 |
0 |
26 |
|
1 |
1 |
0 |
1 |
1 |
0 |
0 |
0 |
27 |
|
0 |
0 |
1 |
1 |
1 |
0 |
0 |
0 |
28 |
|
1 |
0 |
1 |
1 |
1 |
0 |
0 |
0 |
29 |
|
0 |
1 |
1 |
1 |
1 |
0 |
0 |
0 |
30 |
|
1 |
1 |
1 |
1 |
1 |
0 |
0 |
0 |
31 |
|
0 |
0 |
0 |
0 |
0 |
1 |
0 |
0 |
32 |
|
1 |
0 |
0 |
0 |
0 |
1 |
0 |
0 |
33 |
|
0 |
1 |
0 |
0 |
0 |
1 |
0 |
0 |
34 |
|
1 |
1 |
0 |
0 |
0 |
1 |
0 |
0 |
35 |
|
0 |
0 |
1 |
0 |
0 |
1 |
0 |
0 |
36 |
|
1 |
0 |
1 |
0 |
0 |
1 |
0 |
0 |
37 |
|
0 |
1 |
1 |
0 |
0 |
1 |
0 |
0 |
38 |
|
1 |
1 |
1 |
0 |
0 |
1 |
0 |
0 |
39 |
|
0 |
0 |
0 |
1 |
0 |
1 |
0 |
0 |
40 |
|
1 |
0 |
0 |
1 |
0 |
1 |
0 |
0 |
41 |
|
0 |
1 |
0 |
1 |
0 |
1 |
0 |
0 |
42 |
|
1 |
1 |
0 |
1 |
0 |
1 |
0 |
0 |
43 |
|
0 |
0 |
1 |
1 |
0 |
1 |
0 |
0 |
44 |
|
1 |
0 |
1 |
1 |
0 |
1 |
0 |
0 |
45 |
|
0 |
1 |
1 |
1 |
0 |
1 |
0 |
0 |
46 |
|
1 |
1 |
1 |
1 |
0 |
1 |
0 |
0 |
47 |
|
0 |
0 |
0 |
0 |
1 |
1 |
0 |
0 |
48 |
|
1 |
0 |
0 |
0 |
1 |
1 |
0 |
0 |
49 |
|
0 |
1 |
0 |
0 |
1 |
1 |
0 |
0 |
50 |
|
1 |
1 |
0 |
0 |
1 |
1 |
0 |
0 |
51 |
|
0 |
0 |
1 |
0 |
1 |
1 |
0 |
0 |
52 |
|
1 |
0 |
1 |
0 |
1 |
1 |
0 |
0 |
53 |
|
0 |
1 |
1 |
0 |
1 |
1 |
0 |
0 |
54 |
|
1 |
1 |
1 |
0 |
1 |
1 |
0 |
0 |
55 |
|
0 |
0 |
0 |
1 |
1 |
1 |
0 |
0 |
56 |
|
1 |
0 |
0 |
1 |
1 |
1 |
0 |
0 |
57 |
|
0 |
1 |
0 |
1 |
1 |
1 |
0 |
0 |
58 |
|
1 |
1 |
0 |
1 |
1 |
1 |
0 |
0 |
59 |
|
0 |
0 |
1 |
1 |
1 |
1 |
0 |
0 |
60 |
|
1 |
0 |
1 |
1 |
1 |
1 |
0 |
0 |
61 |
|
0 |
1 |
1 |
1 |
1 |
1 |
0 |
0 |
62 |
|
1 |
1 |
1 |
1 |
1 |
1 |
0 |
0 |
63 |
|
0 |
0 |
0 |
0 |
0 |
0 |
1 |
0 |
64 |
|
1 |
0 |
0 |
0 |
0 |
0 |
1 |
0 |
65 |
|
0 |
1 |
0 |
0 |
0 |
0 |
1 |
0 |
66 |
|
1 |
1 |
0 |
0 |
0 |
0 |
1 |
0 |
67 |
|
0 |
0 |
1 |
0 |
0 |
0 |
1 |
0 |
68 |
|
1 |
0 |
1 |
0 |
0 |
0 |
1 |
0 |
69 |
|
0 |
1 |
1 |
0 |
0 |
0 |
1 |
0 |
70 |
|
1 |
1 |
1 |
0 |
0 |
0 |
1 |
0 |
71 |
|
0 |
0 |
0 |
1 |
0 |
0 |
1 |
0 |
72 |
|
1 |
0 |
0 |
1 |
0 |
0 |
1 |
0 |
73 |
|
0 |
1 |
0 |
1 |
0 |
0 |
1 |
0 |
74 |
|
1 |
1 |
0 |
1 |
0 |
0 |
1 |
0 |
75 |
|
0 |
0 |
1 |
1 |
0 |
0 |
1 |
0 |
76 |
|
1 |
0 |
1 |
1 |
0 |
0 |
1 |
0 |
77 |
|
0 |
1 |
1 |
1 |
0 |
0 |
1 |
0 |
78 |
|
1 |
1 |
1 |
1 |
0 |
0 |
1 |
0 |
79 |
|
0 |
0 |
0 |
0 |
1 |
0 |
1 |
0 |
80 |
|
1 |
0 |
0 |
0 |
1 |
0 |
1 |
0 |
81 |
|
0 |
1 |
0 |
0 |
1 |
0 |
1 |
0 |
82 |
|
1 |
1 |
0 |
0 |
1 |
0 |
1 |
0 |
83 |
|
0 |
0 |
1 |
0 |
1 |
0 |
1 |
0 |
84 |
|
1 |
0 |
1 |
0 |
1 |
0 |
1 |
0 |
85 |
|
0 |
1 |
1 |
0 |
1 |
0 |
1 |
0 |
86 |
|
1 |
1 |
1 |
0 |
1 |
0 |
1 |
0 |
87 |
|
0 |
0 |
0 |
1 |
1 |
0 |
1 |
0 |
88 |
|
1 |
0 |
0 |
1 |
1 |
0 |
1 |
0 |
89 |
|
0 |
1 |
0 |
1 |
1 |
0 |
1 |
0 |
90 |
|
1 |
1 |
0 |
1 |
1 |
0 |
1 |
0 |
91 |
|
0 |
0 |
1 |
1 |
1 |
0 |
1 |
0 |
92 |
|
1 |
0 |
1 |
1 |
1 |
0 |
1 |
0 |
93 |
|
0 |
1 |
1 |
1 |
1 |
0 |
1 |
0 |
94 |
|
1 |
1 |
1 |
1 |
1 |
0 |
1 |
0 |
95 |
|
0 |
0 |
0 |
0 |
0 |
1 |
1 |
0 |
96 |
|
1 |
0 |
0 |
0 |
0 |
1 |
1 |
0 |
97 |
|
0 |
1 |
0 |
0 |
0 |
1 |
1 |
0 |
98 |
|
1 |
1 |
0 |
0 |
0 |
1 |
1 |
0 |
99 |
|
0 |
0 |
1 |
0 |
0 |
1 |
1 |
0 |
100 |
|
1 |
0 |
1 |
0 |
0 |
1 |
1 |
0 |
101 |
|
0 |
1 |
1 |
0 |
0 |
1 |
1 |
0 |
102 |
|
1 |
1 |
1 |
0 |
0 |
1 |
1 |
0 |
103 |
|
0 |
0 |
0 |
1 |
0 |
1 |
1 |
0 |
104 |
|
1 |
0 |
0 |
1 |
0 |
1 |
1 |
0 |
105 |
|
0 |
1 |
0 |
1 |
0 |
1 |
1 |
0 |
106 |
|
1 |
1 |
0 |
1 |
0 |
1 |
1 |
0 |
107 |
|
0 |
0 |
1 |
1 |
0 |
1 |
1 |
0 |
108 |
|
1 |
0 |
1 |
1 |
0 |
1 |
1 |
0 |
109 |
|
0 |
1 |
1 |
1 |
0 |
1 |
1 |
0 |
110 |
|
1 |
1 |
1 |
1 |
0 |
1 |
1 |
0 |
111 |
|
0 |
0 |
0 |
0 |
1 |
1 |
1 |
0 |
112 |
|
1 |
0 |
0 |
0 |
1 |
1 |
1 |
0 |
113 |
|
0 |
1 |
0 |
0 |
1 |
1 |
1 |
0 |
114 |
|
1 |
1 |
0 |
0 |
1 |
1 |
1 |
0 |
115 |
|
0 |
0 |
1 |
0 |
1 |
1 |
1 |
0 |
116 |
|
1 |
0 |
1 |
0 |
1 |
1 |
1 |
0 |
117 |
|
0 |
1 |
1 |
0 |
1 |
1 |
1 |
0 |
118 |
|
1 |
1 |
1 |
0 |
1 |
1 |
1 |
0 |
119 |
|
0 |
0 |
0 |
1 |
1 |
1 |
1 |
0 |
120 |
|
1 |
0 |
0 |
1 |
1 |
1 |
1 |
0 |
121 |
|
0 |
1 |
0 |
1 |
1 |
1 |
1 |
0 |
122 |
|
1 |
1 |
0 |
1 |
1 |
1 |
1 |
0 |
123 |
|
0 |
0 |
1 |
1 |
1 |
1 |
1 |
0 |
124 |
|
1 |
0 |
1 |
1 |
1 |
1 |
1 |
0 |
125 |
|
0 |
1 |
1 |
1 |
1 |
1 |
1 |
0 |
126 |
|
1 |
1 |
1 |
1 |
1 |
1 |
1 |
0 |
127 |
|
0 |
0 |
0 |
0 |
0 |
0 |
0 |
1 |
128 |
|
1 |
0 |
0 |
0 |
0 |
0 |
0 |
1 |
129 |
|
0 |
1 |
0 |
0 |
0 |
0 |
0 |
1 |
130 |
|
1 |
1 |
0 |
0 |
0 |
0 |
0 |
1 |
131 |
|
0 |
0 |
1 |
0 |
0 |
0 |
0 |
1 |
132 |
|
1 |
0 |
1 |
0 |
0 |
0 |
0 |
1 |
133 |
|
0 |
1 |
1 |
0 |
0 |
0 |
0 |
1 |
134 |
|
1 |
1 |
1 |
0 |
0 |
0 |
0 |
1 |
135 |
|
0 |
0 |
0 |
1 |
0 |
0 |
0 |
1 |
136 |
|
1 |
0 |
0 |
1 |
0 |
0 |
0 |
1 |
137 |
|
0 |
1 |
0 |
1 |
0 |
0 |
0 |
1 |
138 |
|
1 |
1 |
0 |
1 |
0 |
0 |
0 |
1 |
139 |
|
0 |
0 |
1 |
1 |
0 |
0 |
0 |
1 |
140 |
|
1 |
0 |
1 |
1 |
0 |
0 |
0 |
1 |
141 |
|
0 |
1 |
1 |
1 |
0 |
0 |
0 |
1 |
142 |
|
1 |
1 |
1 |
1 |
0 |
0 |
0 |
1 |
143 |
|
0 |
0 |
0 |
0 |
1 |
0 |
0 |
1 |
144 |
|
1 |
0 |
0 |
0 |
1 |
0 |
0 |
1 |
145 |
|
0 |
1 |
0 |
0 |
1 |
0 |
0 |
1 |
146 |
|
1 |
1 |
0 |
0 |
1 |
0 |
0 |
1 |
147 |
|
0 |
0 |
1 |
0 |
1 |
0 |
0 |
1 |
148 |
|
1 |
0 |
1 |
0 |
1 |
0 |
0 |
1 |
149 |
|
0 |
1 |
1 |
0 |
1 |
0 |
0 |
1 |
150 |
|
1 |
1 |
1 |
0 |
1 |
0 |
0 |
1 |
151 |
|
0 |
0 |
0 |
1 |
1 |
0 |
0 |
1 |
152 |
|
1 |
0 |
0 |
1 |
1 |
0 |
0 |
1 |
153 |
|
0 |
1 |
0 |
1 |
1 |
0 |
0 |
1 |
154 |
|
1 |
1 |
0 |
1 |
1 |
0 |
0 |
1 |
155 |
|
0 |
0 |
1 |
1 |
1 |
0 |
0 |
1 |
156 |
|
1 |
0 |
1 |
1 |
1 |
0 |
0 |
1 |
157 |
|
0 |
1 |
1 |
1 |
1 |
0 |
0 |
1 |
158 |
|
1 |
1 |
1 |
1 |
1 |
0 |
0 |
1 |
159 |
|
0 |
0 |
0 |
0 |
0 |
1 |
0 |
1 |
160 |
|
1 |
0 |
0 |
0 |
0 |
1 |
0 |
1 |
161 |
|
0 |
1 |
0 |
0 |
0 |
1 |
0 |
1 |
162 |
|
1 |
1 |
0 |
0 |
0 |
1 |
0 |
1 |
163 |
|
0 |
0 |
1 |
0 |
0 |
1 |
0 |
1 |
164 |
|
1 |
0 |
1 |
0 |
0 |
1 |
0 |
1 |
165 |
|
0 |
1 |
1 |
0 |
0 |
1 |
0 |
1 |
166 |
|
1 |
1 |
1 |
0 |
0 |
1 |
0 |
1 |
167 |
|
0 |
0 |
0 |
1 |
0 |
1 |
0 |
1 |
168 |
|
1 |
0 |
0 |
1 |
0 |
1 |
0 |
1 |
169 |
|
0 |
1 |
0 |
1 |
0 |
1 |
0 |
1 |
170 |
|
1 |
1 |
0 |
1 |
0 |
1 |
0 |
1 |
171 |
|
0 |
0 |
1 |
1 |
0 |
1 |
0 |
1 |
172 |
|
0 |
0 |
1 |
1 |
0 |
1 |
0 |
1 |
173 |
|
0 |
1 |
1 |
1 |
0 |
1 |
0 |
1 |
174 |
|
1 |
1 |
1 |
1 |
0 |
1 |
0 |
1 |
175 |
|
0 |
0 |
0 |
0 |
1 |
1 |
0 |
1 |
176 |
|
1 |
0 |
0 |
0 |
1 |
1 |
0 |
1 |
177 |
|
0 |
1 |
0 |
0 |
1 |
1 |
0 |
1 |
178 |
|
1 |
1 |
0 |
0 |
1 |
1 |
0 |
1 |
179 |
|
0 |
0 |
1 |
0 |
1 |
1 |
0 |
1 |
180 |
|
1 |
0 |
1 |
0 |
1 |
1 |
0 |
1 |
181 |
|
0 |
1 |
1 |
0 |
1 |
1 |
0 |
1 |
182 |
|
1 |
1 |
1 |
0 |
1 |
1 |
0 |
1 |
183 |
|
0 |
0 |
0 |
1 |
1 |
1 |
0 |
1 |
184 |
|
1 |
0 |
0 |
1 |
1 |
1 |
0 |
1 |
185 |
|
0 |
1 |
0 |
1 |
1 |
1 |
0 |
1 |
186 |
|
0 |
1 |
0 |
1 |
1 |
1 |
0 |
1 |
187 |
|
0 |
0 |
1 |
1 |
1 |
1 |
0 |
1 |
188 |
|
1 |
0 |
1 |
1 |
1 |
1 |
0 |
1 |
189 |
|
0 |
1 |
1 |
1 |
1 |
1 |
0 |
1 |
190 |
|
1 |
1 |
1 |
1 |
1 |
1 |
0 |
1 |
191 |
|
0 |
0 |
0 |
0 |
0 |
0 |
1 |
1 |
192 |
|
1 |
0 |
0 |
0 |
0 |
0 |
1 |
1 |
193 |
|
0 |
1 |
0 |
0 |
0 |
0 |
1 |
1 |
194 |
|
1 |
1 |
0 |
0 |
0 |
0 |
1 |
1 |
195 |
|
0 |
0 |
1 |
0 |
0 |
0 |
1 |
1 |
196 |
|
1 |
0 |
1 |
0 |
0 |
0 |
1 |
1 |
197 |
|
0 |
1 |
1 |
0 |
0 |
0 |
1 |
1 |
198 |
|
1 |
1 |
1 |
0 |
0 |
0 |
1 |
1 |
199 |
|
0 |
0 |
0 |
1 |
0 |
0 |
1 |
1 |
200 |
|
1 |
0 |
0 |
1 |
0 |
0 |
1 |
1 |
201 |
|
0 |
1 |
0 |
1 |
0 |
0 |
1 |
1 |
202 |
|
1 |
1 |
0 |
1 |
0 |
0 |
1 |
1 |
203 |
|
0 |
0 |
1 |
1 |
0 |
0 |
1 |
1 |
204 |
|
1 |
0 |
1 |
1 |
0 |
0 |
1 |
1 |
205 |
|
0 |
1 |
1 |
1 |
0 |
0 |
1 |
1 |
206 |
|
1 |
1 |
1 |
1 |
0 |
0 |
1 |
1 |
207 |
|
0 |
0 |
0 |
0 |
1 |
0 |
1 |
1 |
208 |
|
1 |
0 |
0 |
0 |
1 |
0 |
1 |
1 |
209 |
|
0 |
1 |
0 |
0 |
1 |
0 |
1 |
1 |
210 |
|
1 |
1 |
0 |
0 |
1 |
0 |
1 |
1 |
211 |
|
0 |
0 |
1 |
0 |
1 |
0 |
1 |
1 |
212 |
|
1 |
0 |
1 |
0 |
1 |
0 |
1 |
1 |
213 |
|
0 |
1 |
1 |
0 |
1 |
0 |
1 |
1 |
214 |
|
1 |
1 |
1 |
0 |
1 |
0 |
1 |
1 |
215 |
|
0 |
0 |
0 |
1 |
1 |
0 |
1 |
1 |
216 |
|
1 |
0 |
0 |
1 |
1 |
0 |
1 |
1 |
217 |
|
0 |
1 |
0 |
1 |
1 |
0 |
1 |
1 |
218 |
|
1 |
1 |
0 |
1 |
1 |
0 |
1 |
1 |
219 |
|
0 |
0 |
1 |
1 |
1 |
0 |
1 |
1 |
220 |
|
1 |
0 |
1 |
1 |
1 |
0 |
1 |
1 |
221 |
|
0 |
1 |
1 |
1 |
1 |
0 |
1 |
1 |
222 |
|
1 |
1 |
1 |
1 |
1 |
0 |
1 |
1 |
223 |
|
0 |
0 |
0 |
0 |
0 |
1 |
1 |
1 |
224 |
|
1 |
0 |
0 |
0 |
0 |
1 |
1 |
1 |
225 |
|
0 |
1 |
0 |
0 |
0 |
1 |
1 |
1 |
226 |
|
1 |
1 |
0 |
0 |
0 |
1 |
1 |
1 |
227 |
|
0 |
0 |
1 |
0 |
0 |
1 |
1 |
1 |
228 |
|
1 |
0 |
1 |
0 |
0 |
1 |
1 |
1 |
229 |
|
0 |
1 |
1 |
0 |
0 |
1 |
1 |
1 |
230 |
|
1 |
1 |
1 |
0 |
0 |
1 |
1 |
1 |
231 |
|
0 |
0 |
0 |
1 |
0 |
1 |
1 |
1 |
232 |
|
1 |
0 |
0 |
1 |
0 |
1 |
1 |
1 |
233 |
|
0 |
1 |
0 |
1 |
0 |
1 |
1 |
1 |
234 |
|
1 |
1 |
0 |
1 |
0 |
1 |
1 |
1 |
235 |
|
0 |
0 |
1 |
1 |
0 |
1 |
1 |
1 |
236 |
|
1 |
0 |
1 |
1 |
0 |
1 |
1 |
1 |
237 |
|
0 |
1 |
1 |
1 |
0 |
1 |
1 |
1 |
238 |
|
1 |
1 |
1 |
1 |
0 |
1 |
1 |
1 |
239 |
|
0 |
0 |
0 |
0 |
1 |
1 |
1 |
1 |
240 |
|
1 |
0 |
0 |
0 |
1 |
1 |
1 |
1 |
241 |
|
0 |
1 |
0 |
0 |
1 |
1 |
1 |
1 |
242 |
|
1 |
1 |
0 |
0 |
1 |
1 |
1 |
1 |
243 |
|
0 |
0 |
1 |
0 |
1 |
1 |
1 |
1 |
244 |
|
1 |
0 |
1 |
0 |
1 |
1 |
1 |
1 |
245 |
|
0 |
1 |
1 |
0 |
1 |
1 |
1 |
1 |
246 |
|
1 |
1 |
1 |
0 |
1 |
1 |
1 |
1 |
247 |
|
0 |
0 |
0 |
1 |
1 |
1 |
1 |
1 |
248 |
|
1 |
0 |
0 |
1 |
1 |
1 |
1 |
1 |
249 |
|
0 |
1 |
0 |
1 |
1 |
1 |
1 |
1 |
250 |
|
1 |
1 |
0 |
1 |
1 |
1 |
1 |
1 |
251 |
|
0 |
0 |
1 |
1 |
1 |
1 |
1 |
1 |
252 |
